Robust body
The newest series of German Equatorial style mouts by Fornax allow for the precise positioning and tracking of large telescopes. Available in three different sizes depending on payload requirements: FORNAX 52, FORNAX 102, FORNAX 152
No backlash

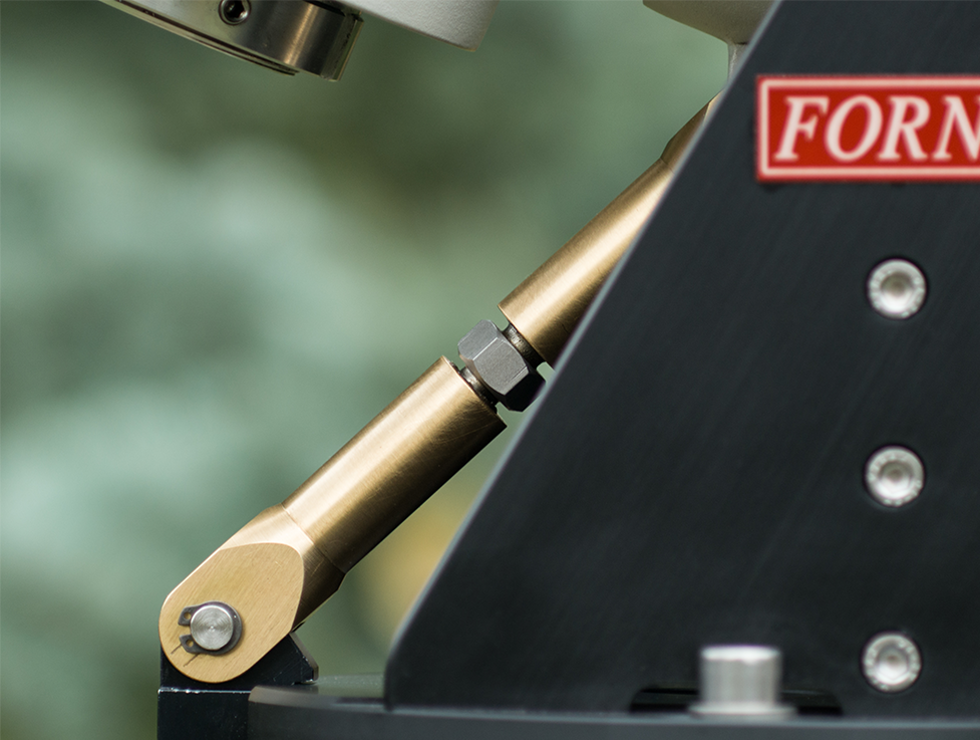

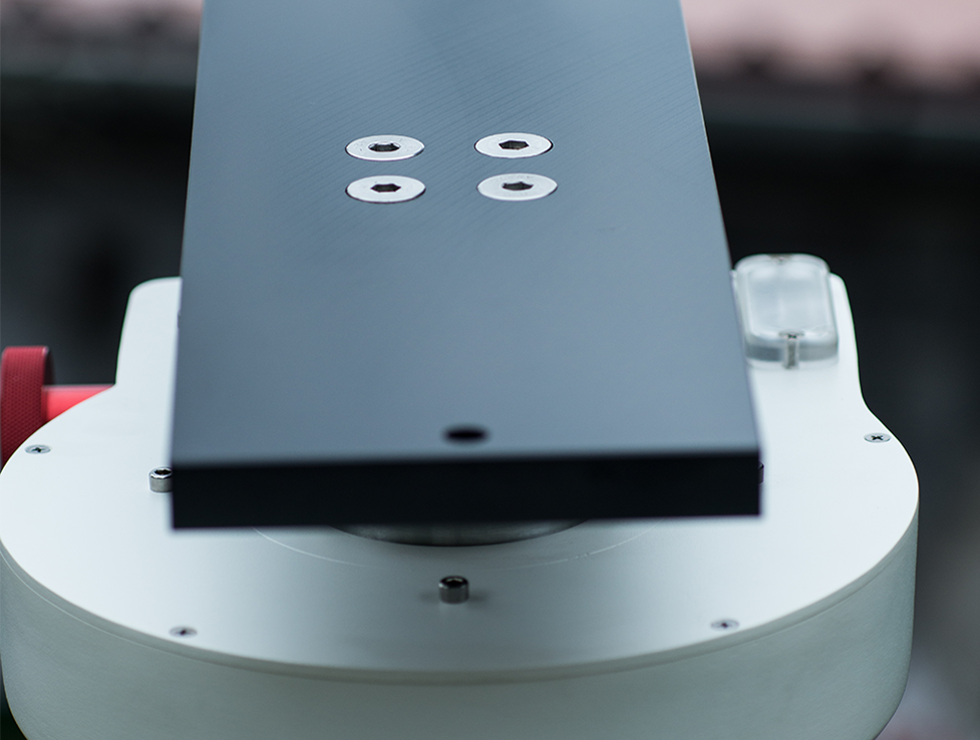

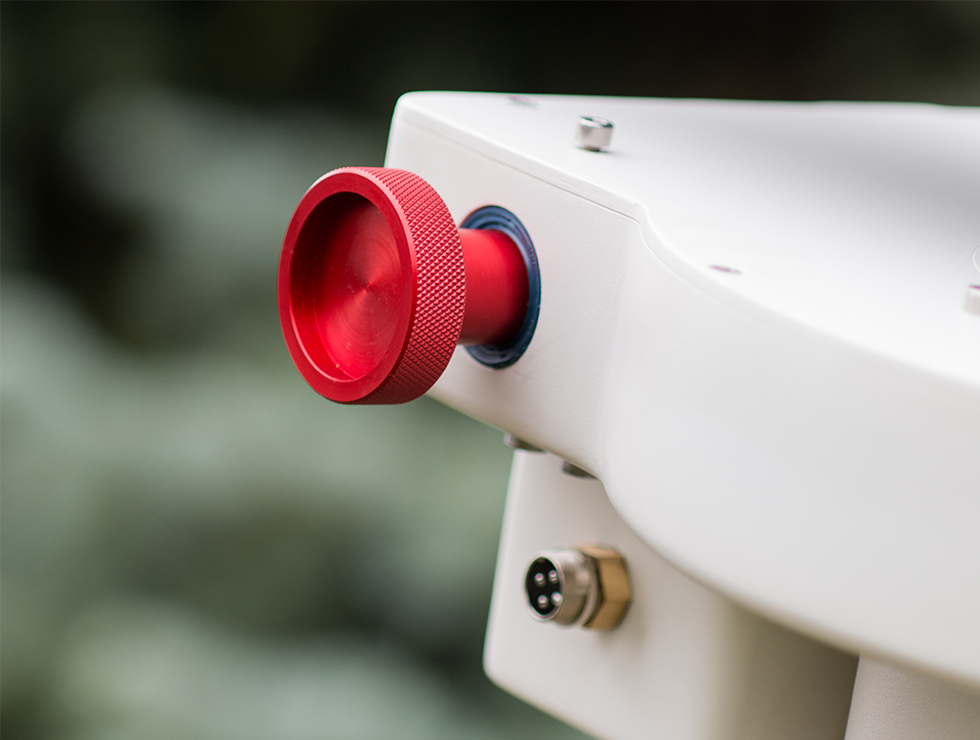

The components of this extremely sturdy mount are crafted of aluminum alloy, cast aluminum, bronze, and stainless steel. The worm gear and the electric motor are located in an enclosed, sealed space (both waterproof and dust-proof), and are practically maintenance free. This gives the drive mechanism increased resistance to dust and temperature fluctuations and makes the mount ideal for use in harsh environments. Thanks to the ingenious solution used in the inner drive mechanism this telescope mount doesn't suffer from any backlash.
Extremely Accurate TRACKING
Typical un-guided periodic error is <+/- 6 arc seconds (one period on the worm gear is 7.5 minutes long!) When using auto guiding, the mount reacts immediately, so corrections are very fast and completely free of play. When using a TDM (Telescope Drive Master), this can be reduced to below +/-0.5 arc seconds (TDM is an alternative solution to guiding). This is the ultimate solution for astrophotography with a high quality / capital cost ratio. This model is suitable for both permanent observatories and is Tri-Pier mountable for mobile use.
what do the astrophotographers think?
FORNAX 52
SPECIFICATIONS
Mount weight - 35 kg Max payload - 50 kg Gear - D 194 mm 1 modul

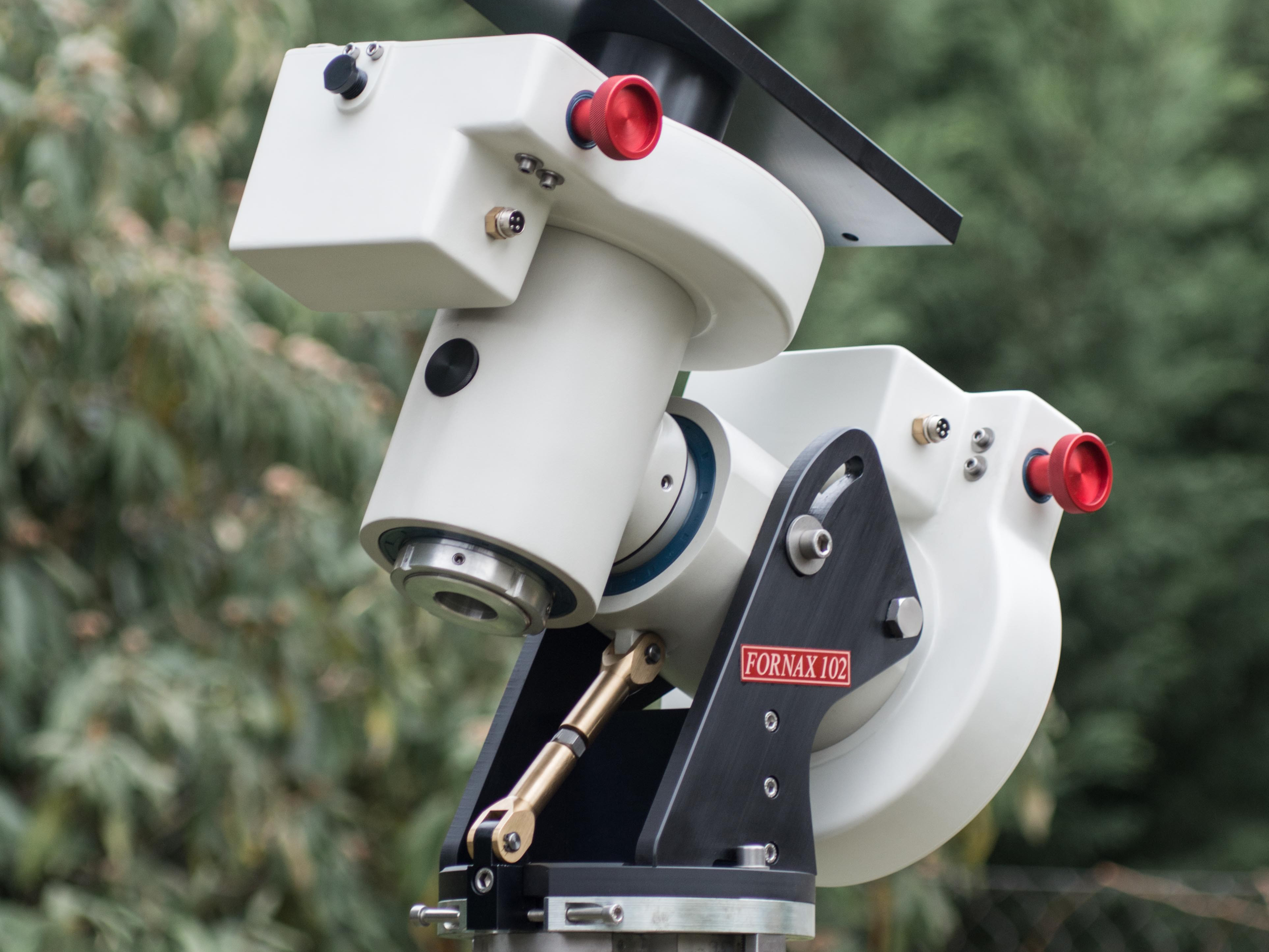

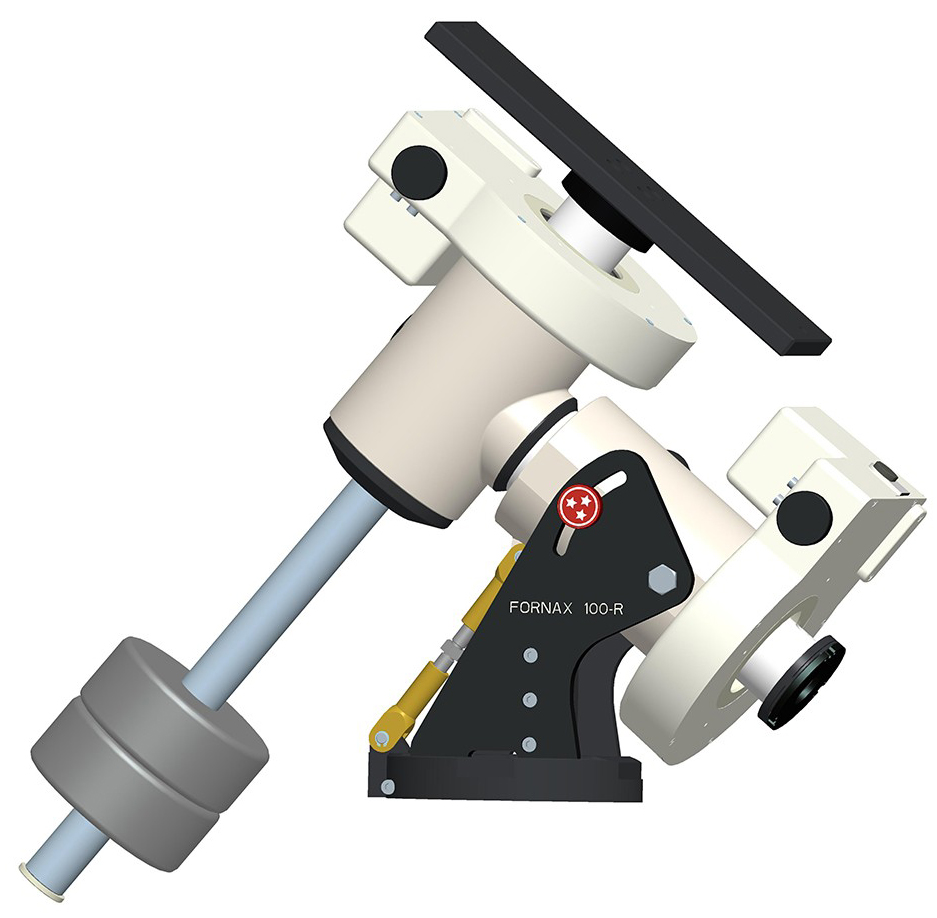

FORNAX 102
SPECIFICATIONS
Mount weight - 50 kg Max payload - 90 kg Gear - D 245.5 mm 1.25 modul

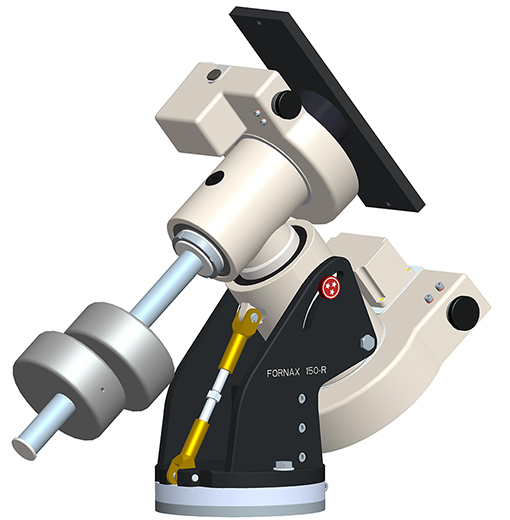

FORNAX 152
SPECIFICATIONS
Mount weight - 70 kg Max payload - 120 kg Gear - D 292.5 mm 1.5 modul
FORNAX MOUNTS AMBASSADORS
OUR BRAND PARTNERS:
Fornax has been developing and producing astronomical equipment for 20 years now. Our main focus is manufacturing astronomical mounts, but our range includes other astronomical auxiliary products. In addition to private projects we have been involved in such prestigious projects as the HAT (Hungarian Automated Telescope) project, one of the most successful projects in exo-planet exploration, or the BlackGem project. Our customers include Harvard and Princeton universities. Our mounts are used by many famous astrophotographers, and their award winning pictures taken with the help of our products stand as testament to the quality.
